Fastening Press Tool SC920A

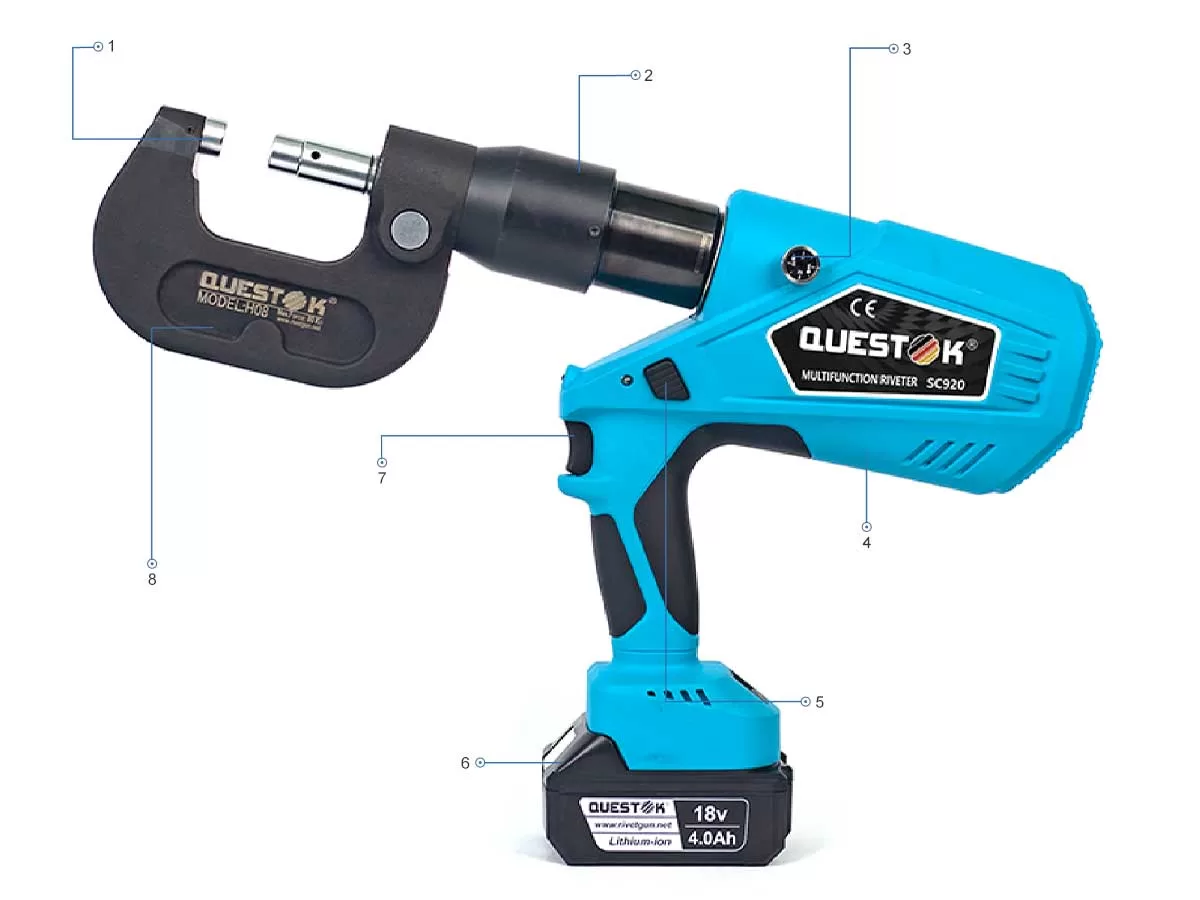

Functions

1. Various Professional Dies for Diffefent Function

Riveting, pressing, flattening, dismantling, punching, etc.

2. High Pressure Cylinder

The high pressure hydraulic cylinder gives you a maximum working pressure of 80KN.

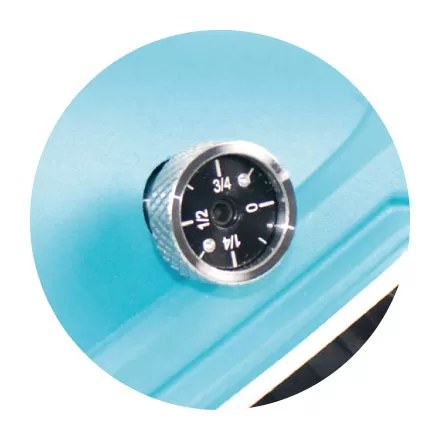

3. Pressure Ajudst Valve

Pressure is adjustable from 30kn to 60kn according to different panels’ materials and thickness, thus to guarantee quality riveting in various applications.

4. Trigger and Handle

Ergonomic design, comfortable to hold.

5. Special Designed Arm

350° free rotating arm, 3 different options to meet different demands, customization is available.

6. With Electro-Hydraulic Control System

Microcomputer control precision hydraulic svstem quarantees to achieve stable output of high-precision,high-pressure and variable pressure.

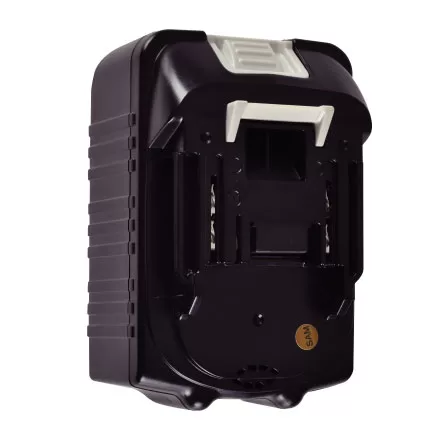

7. 18V Rechargeable Lithium Batteries

Rechargeable lithium batteries, service life reaches 600 times of charge and discharge each full charge can rivet 250 to 350 times.

8. Manualpressure Relief Valve

in case of misoperation, press it to relieve pressure.

Configuration

1 Set Reliable Machine

Various Dies for Different Functions

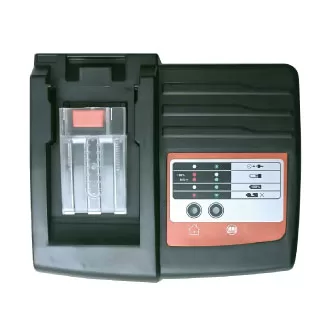

Fast Charger

Large Capacity Lithium Battery X2

Effort-Saving Sling

Specifications

Item	Specification
Force	40~80Kn adjustable
Motor	18V DC
Battery	DC 18V 4Ah lithium battery
Charger	AC 100V-240V 50-60Hz
Charging Time	1hour
Work Temperature	-10℃-40℃
Work Period	3-4s/time
Work Time/Full Charge	300-400times vary according to force
Noise	75dB

Features

Precise Pressure Value: +1~2%

Portable,standard set weightis 5kg.

Pressureisadiustable from 30kn to 60kn.

1 riveting takes 2-3 seconds.

18V rechargeable lithium batteries.

8 functions available.

Riveting Die

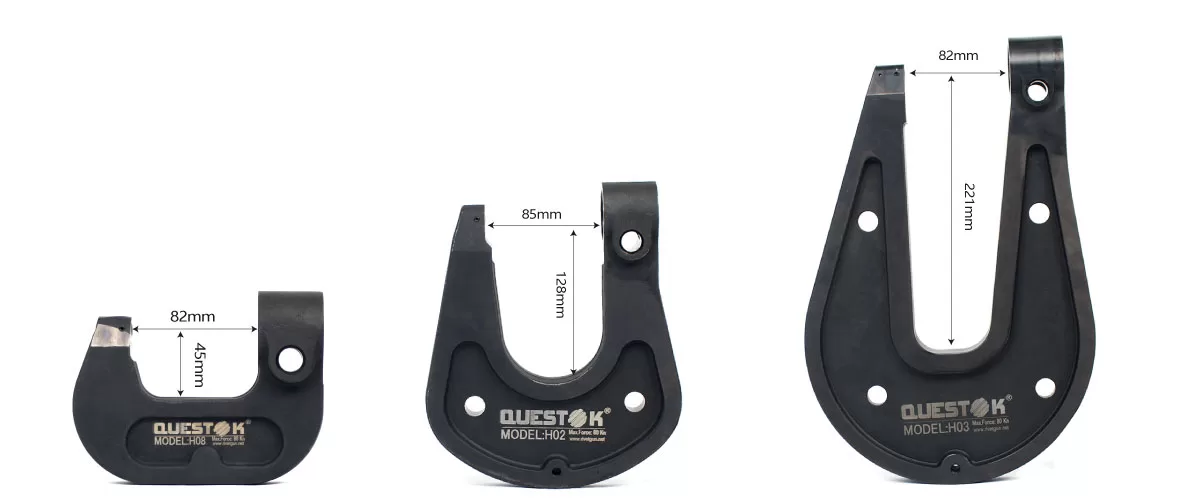

Options

SC-920 Options

Professional Customized Arms

We can provide customized arms according to different car brands and your different applications thus to guarantee efficiency and convenience and rivet quality.
