Audi / Benz Self-Piercing Riveter ESR830A

Portable

Total weight of standard machine is 5kg convenient to use at different work sites.

Efficient

Meet the demand of high frequency use (2 seconds for 1 riveting).

Various application

Designed for fast riveting on various material panels in different thickness from 0.5mm to 9mm.

Get A Quote

Audi / Benz Self-Piercing Riveter ESR830A

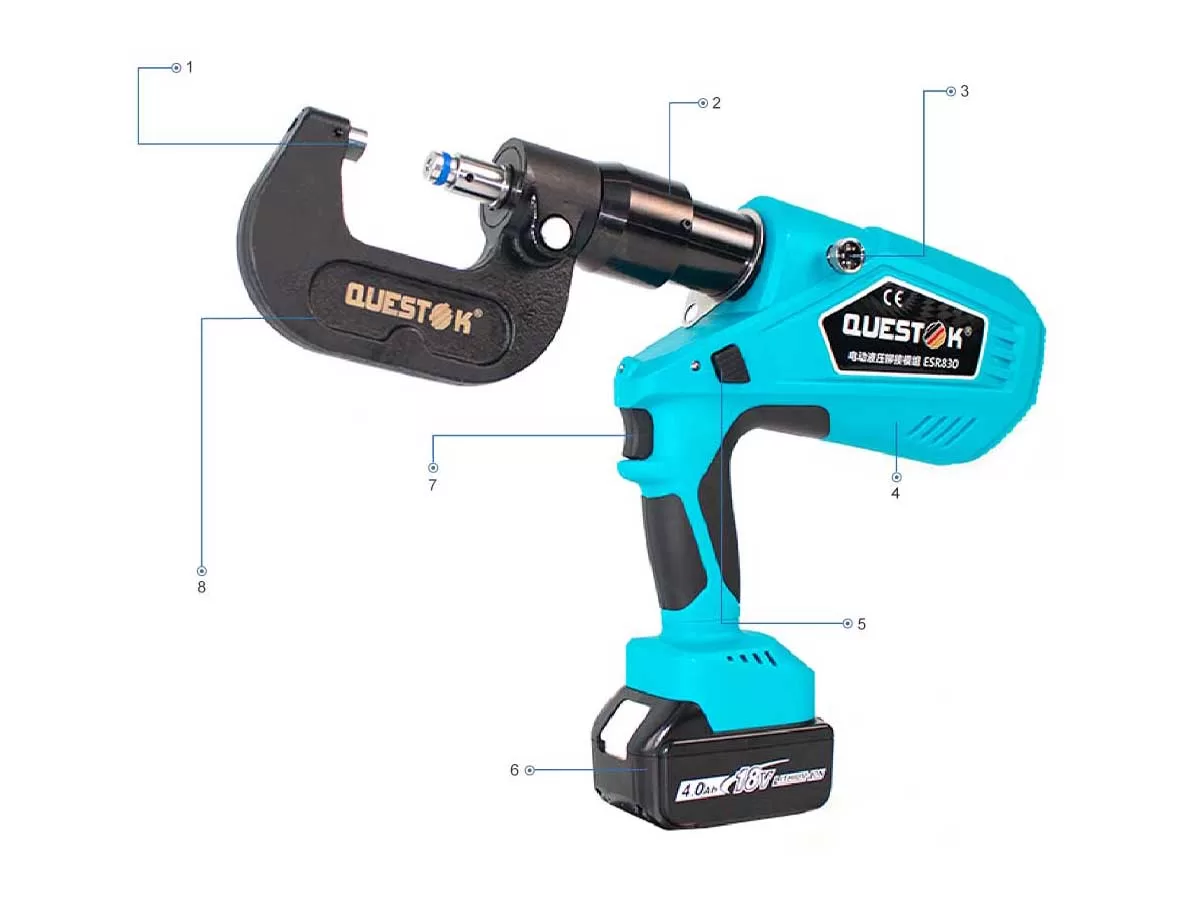

Functions

1. Various Professional Dies for Diffefent Function

Riveting, pressing, flattening, dismantling.punching, etc.

2. High Pressure Cylinder

Stable Output of Strong Power.

3. Pressure Ajudst Valve

Pressure is adiustable from 30kn to 60kn according to different panels’ materials ana thickness thus to quarantee quality riveting in various applications.

4. Trigger and Handle

Ergonomic design, comfortable to hold.

5. With Electro-Hydraulic Control System

Microcomputer control precision hydraulic svstem quarantees to achieve stable output of high-precision,high-pressure and variable pressure.

6. Special Designed Arm

350°free rotating arm, 3 different options to meet different= demands, customization is available.

7. Manual Pressure Relief Valve

In case of misoperation, press it to relieve pressure.

8. 18V Rechargeable Lithium Batteries

Rechargeable lithium batteries, service life reaches 600 times of charge and discharge each full charge can rivet 250 to 350 times.

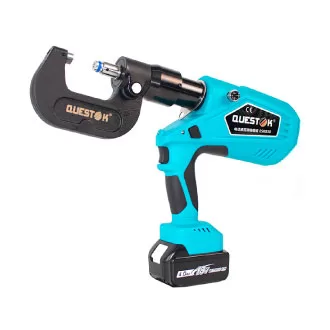

Configuration

1 Set Reliable Machine

Various Dies for Different Functions

Fast Charger

Large Capacity Lithium Battery X2

Effort-Saving Sling

Specifications

Item	Specification
Force	30~60Kn adjustable
Motor	18V DC
Battery	DC 18V 4Ah lithium battery
Charger	AC 100V-240V 50-60Hz
Charging Time	1hour
Work Temperature	-10℃-40℃
Work Period	3-4s/time
Work Time/Full Charge	300-400times vary according to force
Noise	75dB

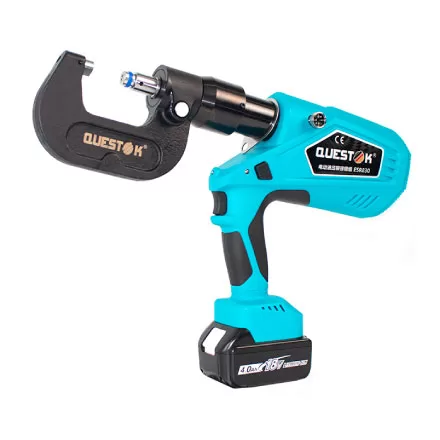

Features

Portable, standard set weightis 5kg.

Pressureisadiustable from 30kn to 60kn.

1 riveting takes 2-3 seconds.

18V rechargeable lithium batteries.

8 functions available.

Riveting Die

https://yuncdn.questok.com/

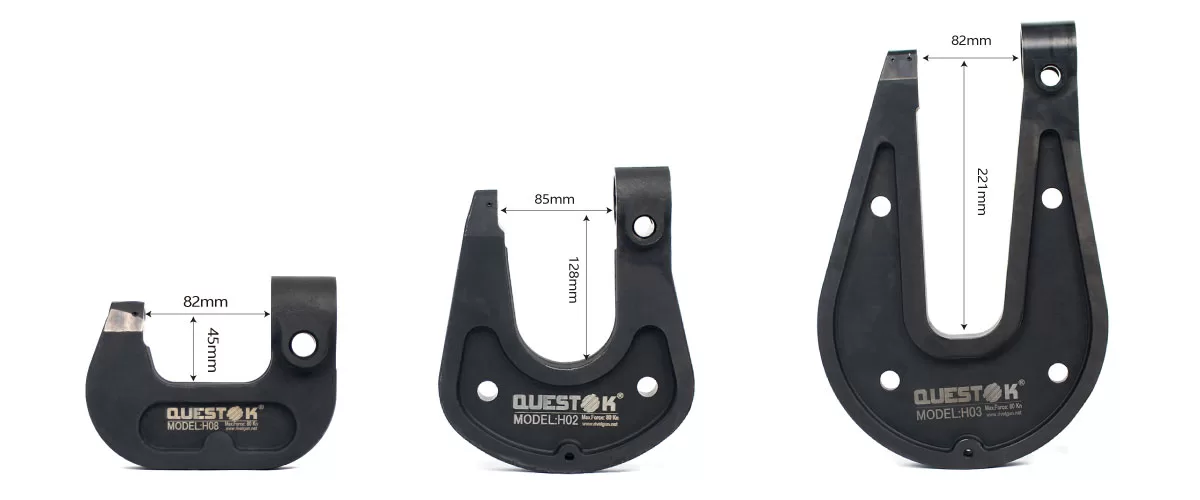

Options

ESR-830 Options

Professional Customized Arms

We can provide customized arms according to different car brands and your different applications thus to guarantee efficiency and convenience and rivet quality.
