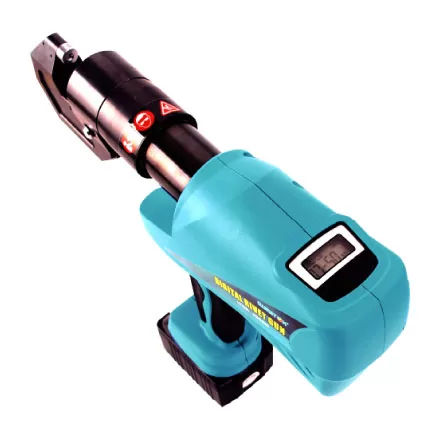

Handheld Rivetless Clinching Tool CG880A

Portable
Total weight of standard machine is 5kg convenient to use at different work sites.
Efficient
Meet the demand of high frequency use (3-5 seconds for 1 riveting).
Various Application
Designed for fast riveting on various material panels in different thickness from 0.5mm to 9mm.
Get A Quote
Handheld Rivetless Clinching Tool CG880A
Handheld Rivetless Clinching Tool CG880A
Handheld Rivetless Clinching Tool CG880A
Handheld Rivetless Clinching Tool CG880A
Handheld Rivetless Clinching Tool CG880A
Handheld Rivetless Clinching Tool CG880A
Handheld Rivetless Clinching Tool CG880A
Handheld Rivetless Clinching Tool CG880A

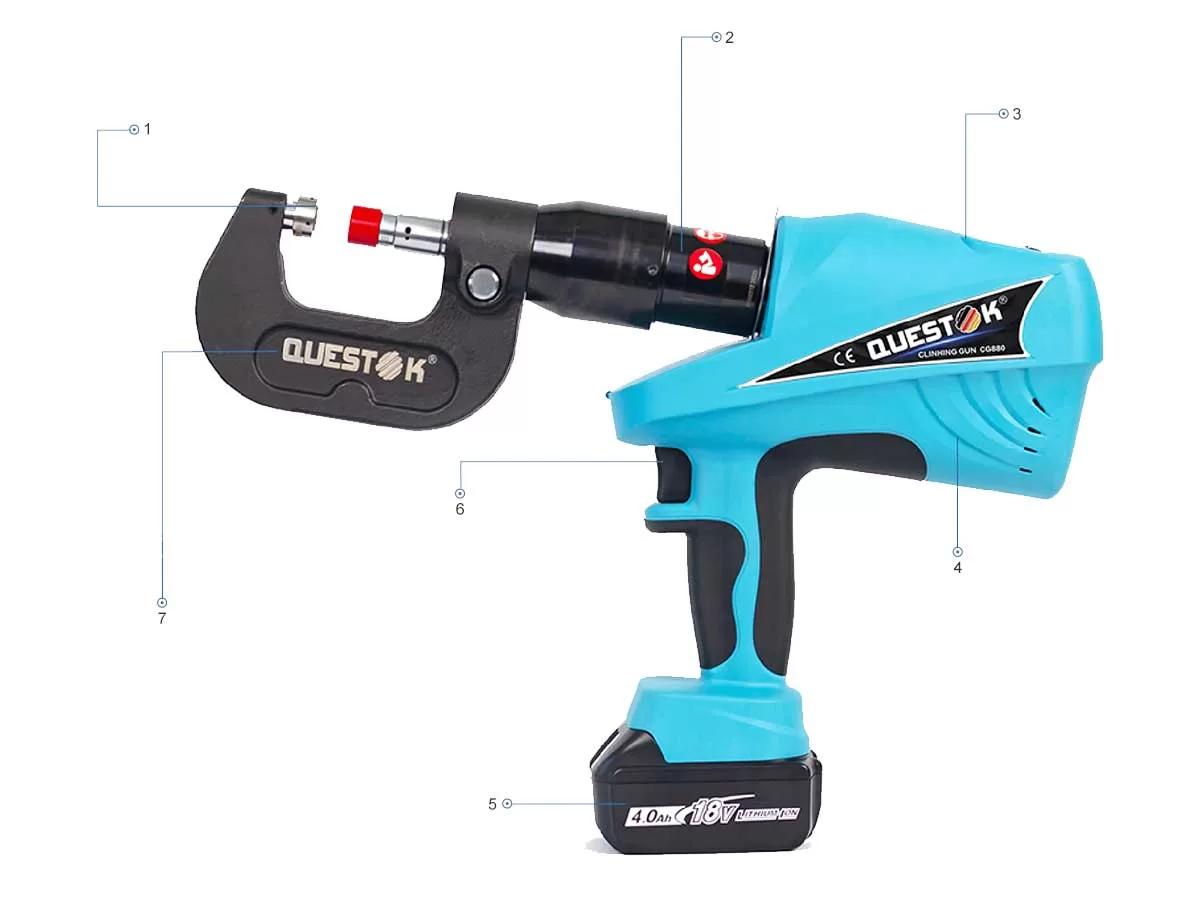

Functions
Functions

1. Various Professional Dies for Diffefent Function

Riveting, pressing, flattening, dismantling, punching, etc.

2. High Pressure Cylinder

The high pressure hydraulic cylinder gives you a maximum working pressure of 80KN.

3. LCD Screen

Digital display screen shows the set and actual pressures ensuring precise accuracy.

4. Trigger and Handle

Ergonomic design, comfortable to hold.

5. Special Designed Arm

350° free rotating arm, 3 different options to meet different demands, customization is available.

6. Electro-Hydraulic Control System

Microcomputer control precision hydraulic system quarantees to achieve stable output of high-precision, high-pressure and variable pressure.

7. 18V Rechargeable Lithium Batteries

Rechargeable lithium batteries, service life reaches 600 times of charge and discharge, each full charge can rivet 250 to 350 times.

Configuration

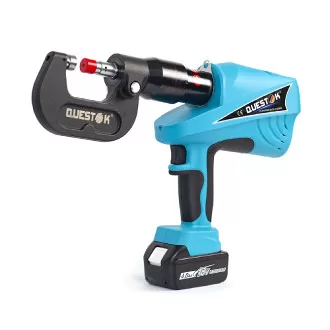

1 Set Reliable Machine
1 Set Reliable Machine

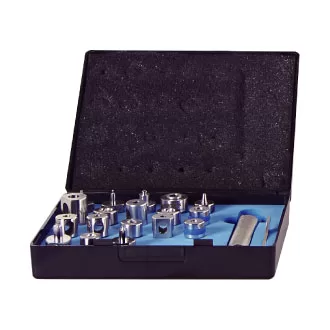

Various Dies for Different Functions
Various Dies for Different Functions

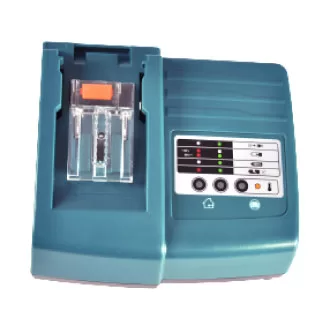

Fast Charger
Fast Charger
Large Capacity Lithium Battery X2
Large Capacity Lithium Battery X2
Effort-Saving Sling
Effort-Saving Sling
Specifications
Item Specification
Force 1~80Kn adjustable
Motor 18V DC
Battery DC 18V 4Ah lithium battery
Charger AC 100V-240V  50-60Hz
Charging Time 1hour
Work Temperature -10℃-40℃
Work Period 3-4s/time
Work Time/Full Charge 300-400times vary according to force
Noise 75dB
Features

Precise Pressure Value: +1~2%

Micro-Computer Chip

Micro-Computer Chip

Software is written into the micro-computer chip to ensure stable and accurate functions.

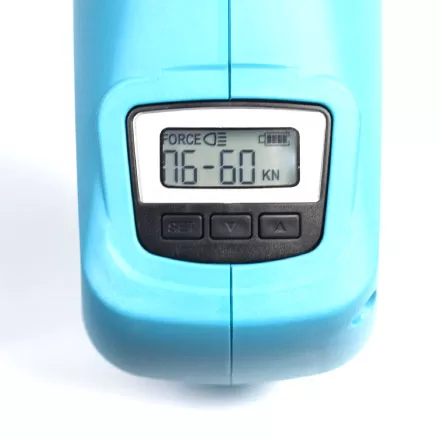

Digital Display LCD

Digital Display LCD

The digital display screen allows you to see the set pressure and the actua pressure of the rivet as manufacturers’ requirements:+/- 1~2%.

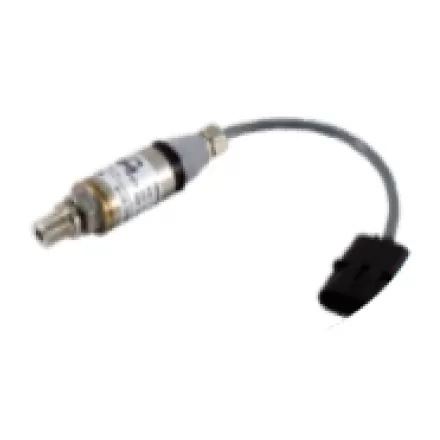

High Precision Sensor

High Precision Sensor

The DSR-880 uses the most advanced German technology will guarantee 1~2% accuracy.

Adjustable Range of Force

Adjustable Range of Force

  • 1~80KN Digital pressure setting.
  • ±1~2% pressure tollerance.
  • 9 pressure setting figure memories.
Riveting Die

Riveting Die

Options

CG-880 Options

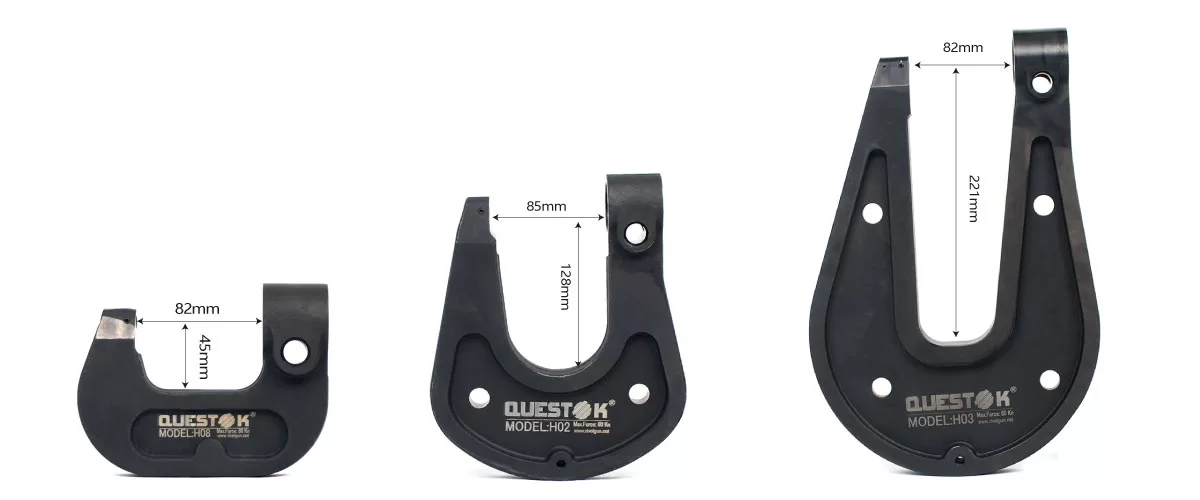

Professional Customized Arms

We can provide customized arms according to different car brands and your different applications thus to guarantee efficiency and convenience and rivet quality.

CG-880 Options
